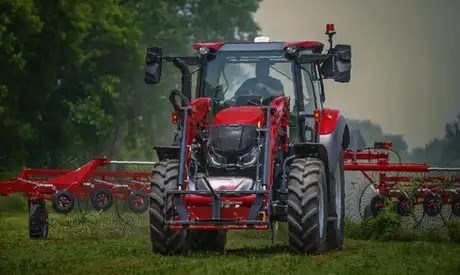

Case IH Vestrum 110

Double tap to zoom



Features

Engine

Efficient, Fuel-Saving Engines

A powerful engine, paired with the innovative CVXDrive transmission or ActiveDrive 8 transmission, guarantees unparalleled power and superior ride quality. Automatic Productivity Management (APM) ensures the perfect fusion of engine and transmission, giving you a fuel-efficient machine. The 4.5 liter engine has 16 valves for better gas exchange. The 600 hour service interval means less time in the service bay, reducing total cost of ownership.

Transmission

A Choice of Transmissions to Fit Your Operation

Vestrum series tractors are available with two transmissions:

ActiveDrive 8 transmission delivers uninterrupted torque through more working speeds, faster shuttle shifts and simplified shifting. This 24-speed transmission features eight powershift speeds in three electronically shifted ranges.

The user-friendly CVXDrive continuously variable transmission (CVT) provides smooth, seamless speed changes through varying conditions and continuously adjusts to maintain the desired speed under any load. It’s an ideal transmission for loader work, baling hay or roading.

Operator Environment

Premium Comfort Zone

With the Vestrum tractor, Case IH brings you the premium comfort you’re used to from larger models to the mid-range 4-cylinder segment. Step into a workplace where you can simply feel comfortable. Featuring easy entrance from both sides of the cab and a panoramic high-visibility roof panel. Optional suspended cab provides a smooth ride all day long.

MultiControl Armrest

Everything Within Reach

The Vestrum series tractors come equipped with the MultiControl Armrest. The MultiControl armrest is ergonomically designed and places most common tractor functions at your fingertips.

Precision Technology

Precision Farming Technology

Compatible with optional Case IH Precision Technology and ISOBUS technologies, the Vestrum series tractors can be customized for your specific operation.

Hitch, Hydraulics & PTO

Maximum Flexibility

The Vestrum series tractors are designed to take on a variety of applications.

Hitch:

  • Front PTO and 3-point hitch is optional
  • Rear 3-point hitch has a lift capacity of 6,700 lbs to meet demanding operations

Hydraulics:

  • The 28.5 gpm hydraulic pump has more flow at lower engine speeds.
  • Pressure-flow compensation (PFC) system is available for operations that require more flow or continuous flow

PTO:

  • Three rear PTO speeds come standard including 540 Economy speed

Maximum Flexibility

The Vestrum series tractors are designed to take on a variety of applications.

Hitch:

  • Front PTO and 3-point hitch is optional
  • Rear 3-point hitch has a lift capacity of 6,700 lbs to meet demanding operations

Hydraulics:

  • The 28.5 gpm hydraulic pump has more flow at lower engine speeds.
  • Pressure-flow compensation (PFC) system is available for operations that require more flow or continuous flow

PTO:

  • Three rear PTO speeds come standard including 540 Economy speed

Specifications

Classification Horsepower 110
Drive Type Wheeled Tractor
Drive Configuration 4WD
Rated Engine Power hp110
Rated Speed rpm2200
Fuel Tank gallon (US)47
DEF Tank gallon (US)5
Motor Performance
Traction Battery
Rear PTO
PTO Power hp88
540rpm
540 Available? Yes
540E Available? Yes
1000rpm
1000 Available? Optional
Front PTO
Engine Speed At 1000 rpm1920
Details
Make FPT
Cylinders 4
Displacement in³273
Aspiration Turbocharger. Intercooler
Fuel System
Emission Treatment
Diesel Oxidation Catalyst Yes
Selective Catalytic Reduction (SCR) Yes
Exhaust Orientation Vertical
Alternator
Voltage V12
Rating A200
Engine Battery
Capacity Ah176
Cold Cranking Amps cca1300
Description CVXDrive
Type Continuously Variable Transmission (CVT)
Forward Speeds 24
Reverse Speeds 24
Max Speed mph25
Creeper Range Optional
Steering Configuration Front Steer
Service Brake Wet Multi Disc
System Type Pressure Flow Compensated (PFC)
Main Pump Type Variable Displacement
Implement Pump Flow gallon (US)/min28.5
Remote Valves 3
Features
3-Point Hitch Category Category 2
Draft Sensing Or Lift Control Electronic Draft Control
Lift Capacity
Standard Capacity 24 Inches Behind Pin lb6700
Wheelbase in98.1
Length in173.1
Height Over Cab in111.7
Weight lb12900
Tracks
